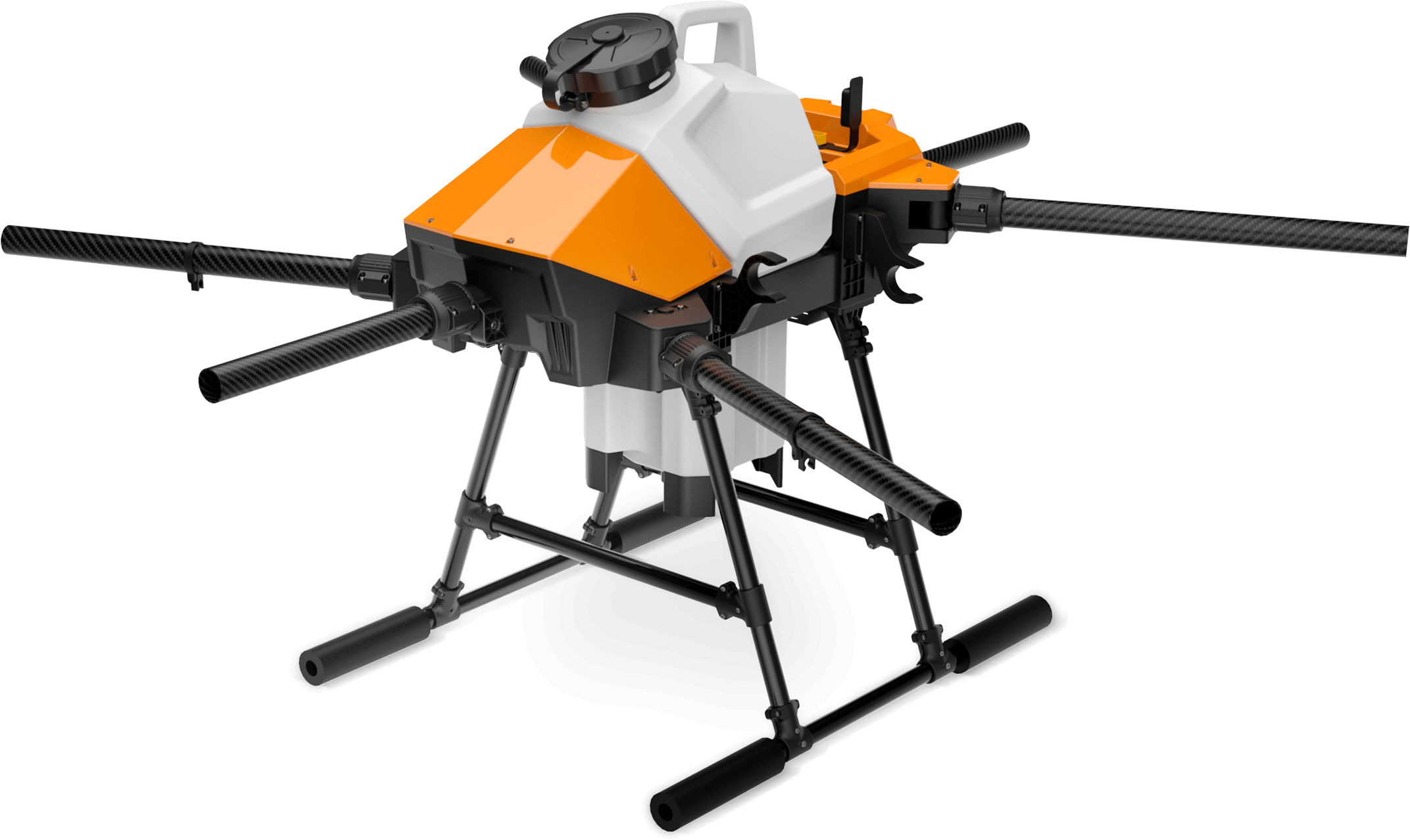

EFT G410 G610 G616 agriculture drone frame

G10

AGRICULTURAL DRONE FRAME

10L
Capacity
Plug-In
Battery
Plug-In
Tank
Waterproof
Design
One Drone With
Multiple Functions

Integral frame

The frame is integrally formed, with a simplified structure, strong strength, and good durability and reliability

Cross-folding structure

The arm adopts cross-folding and staggered folding method, which minimizes the folded size and facilitates transfer and transportation

Obstacle avoidance/altitude radar

Brushed water pump, Extension Y-type nozzle, stacked flight control, FPV camera, RTK positioning

Dustproof and waterproof

The whole machine is dustproof and waterproof, and the waterproof level reaches IP65 and can be washed directly with water

Four And Six Axis Shared Frame

Parameter	G610
Wheelbase	1461mm
Tank capacity	10L
Frame weight	6.64kg
Max weight	27kg
Recommend motor	X6Plus 24inch

Parameter	G410
Wheelbase	1513mm
Tank capacity	10L
Frame weight	6.47kg
Max weight	27kg
Recommend motor	X8 30inch

Parameter	G616
Wheelbase	1721mm
Tank capacity	16L
Frame weight	7.47kg
Max weight	38kg
Recommend motor	X8 30inch

Accessories installation reference

Obstacle avoidance/altitude radar
brushed water pump
Extension Y-type nozzle
stacked flight control
FPV camera
RTK positioning

One machine for multiple uses (spray + spread)

The spreading system and spraying system can be quickly replaced to meet the operation requirements of two different scenarios

Spreading system installation effect
Spreading system installation effect

For bulk purchases, customization, technical consultation, etc., please leave your requirements and contact information, we will get in touch with you as soon as possible. You can also contact us directly, Tel: (0551) 62579736, Email: infor@effort-tech.com
