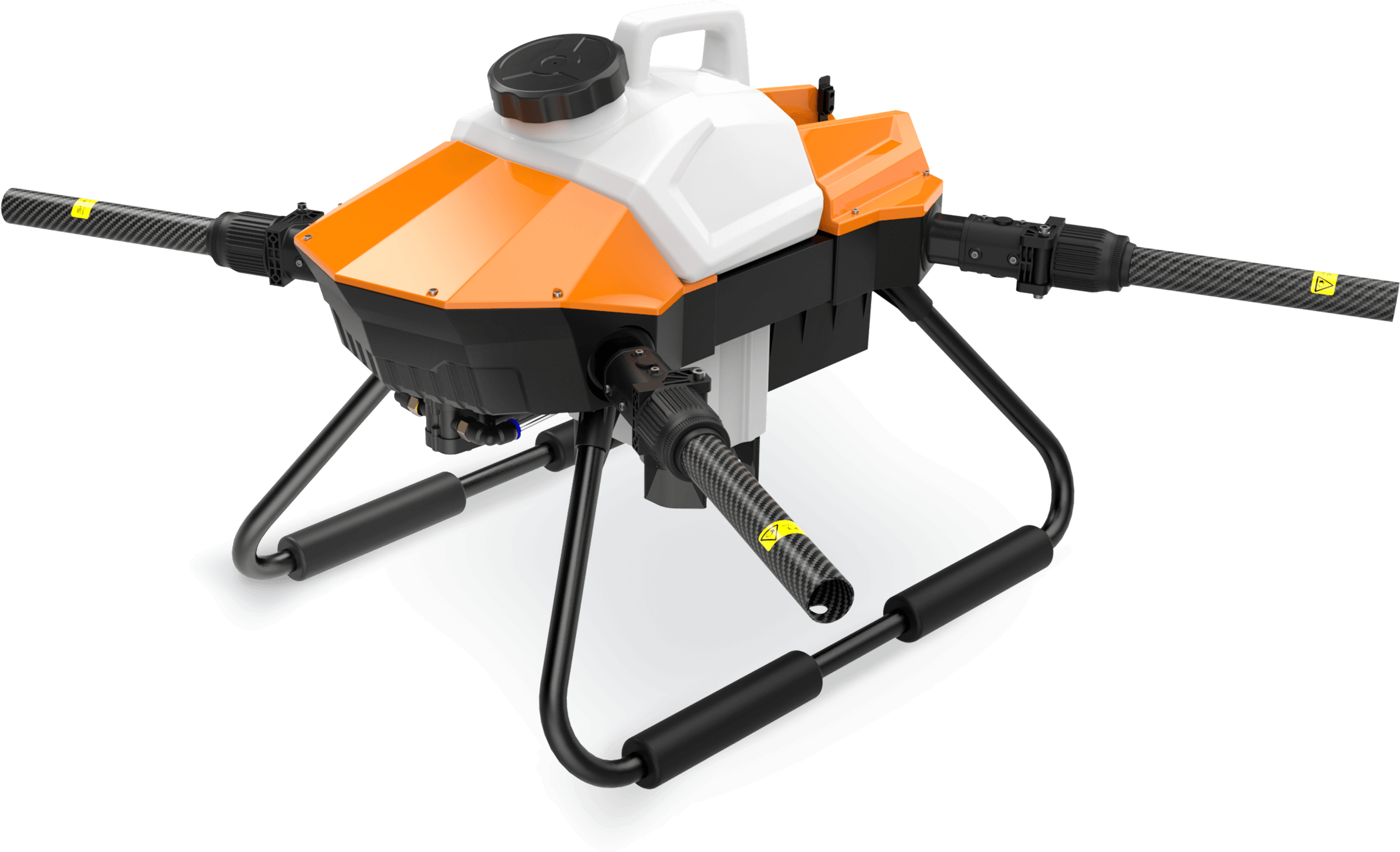

G06 agricultural drone frame
6L effective capacity
rectangular layout
plug-in battery tank
foldable
customized
Integrated body
G06 adopts an integrated body design, which greatly reduces the number of parts, and at the same time has higher strength and better waterproof performance
Three-stage compact fuselage
G06 adopts three-stage fuselage layout to design the front flight control middle tank
and the rear battery. The structure is exquisite and the shape is unique
Quick-release battery medicine box
G06 adopts quick-release tank + quick-release battery design, which can realize quick medicine change
and battery change, simple operation, time-saving and labor-saving
Rectangular layout scheme
G06 adopts a flat rectangular layout scheme, extending the arms to both sides, maximizing the distance between the nozzles, thereby increasing the spray range
Ultra-small body and fast folding
G06 has a compact body, but also can be quickly folded, which is convenient for transit and transportation
Folding size
-
650mm
Drone width
-
612mm
Drone length
-
477mm
Drone height
Modular design
The whole body of G06 adopts modular design, and each part can be quickly disassembled and replaced, which is convenient for maintenance
Optional fixed-height radar
G06 has reserved a fixed-height radar installation position, and can be equipped with millimeter wave radar to achieve more accurate height-fixing and ground-like effects
Recommended configuration
-
G06 frame+spray system ×1
-
Hobbywing X6 motor set ×4
-
Jiyi K3A Pro flight control ×1
-
Skydriod T10 remote control (including camera) ×1
-
OKCELL 8000mAh (12S) battery ×2
-
OKCELL mini charger ×1
The assembled G06 agricultural drone display
