The frame is integrally formed, with a simplified structure, strong strength, and good durability and reliability
Cross-folding structure
The arm adopts cross-folding and staggered folding method, which minimizes the folded size and facilitates transfer and transportation
Two battery schemes
Two installation schemes of smart battery and plug-in battery can be selected to meet the different needs of users
Smart 2.0 battery
smart 3.0 battery
Note: suitable for Tattu 3.0 smart battery
Dustproof and waterproof
The frame is dustproof and waterproof, and the waterproof level reaches IP65 and can be washed directly with water
Multi-frame matching

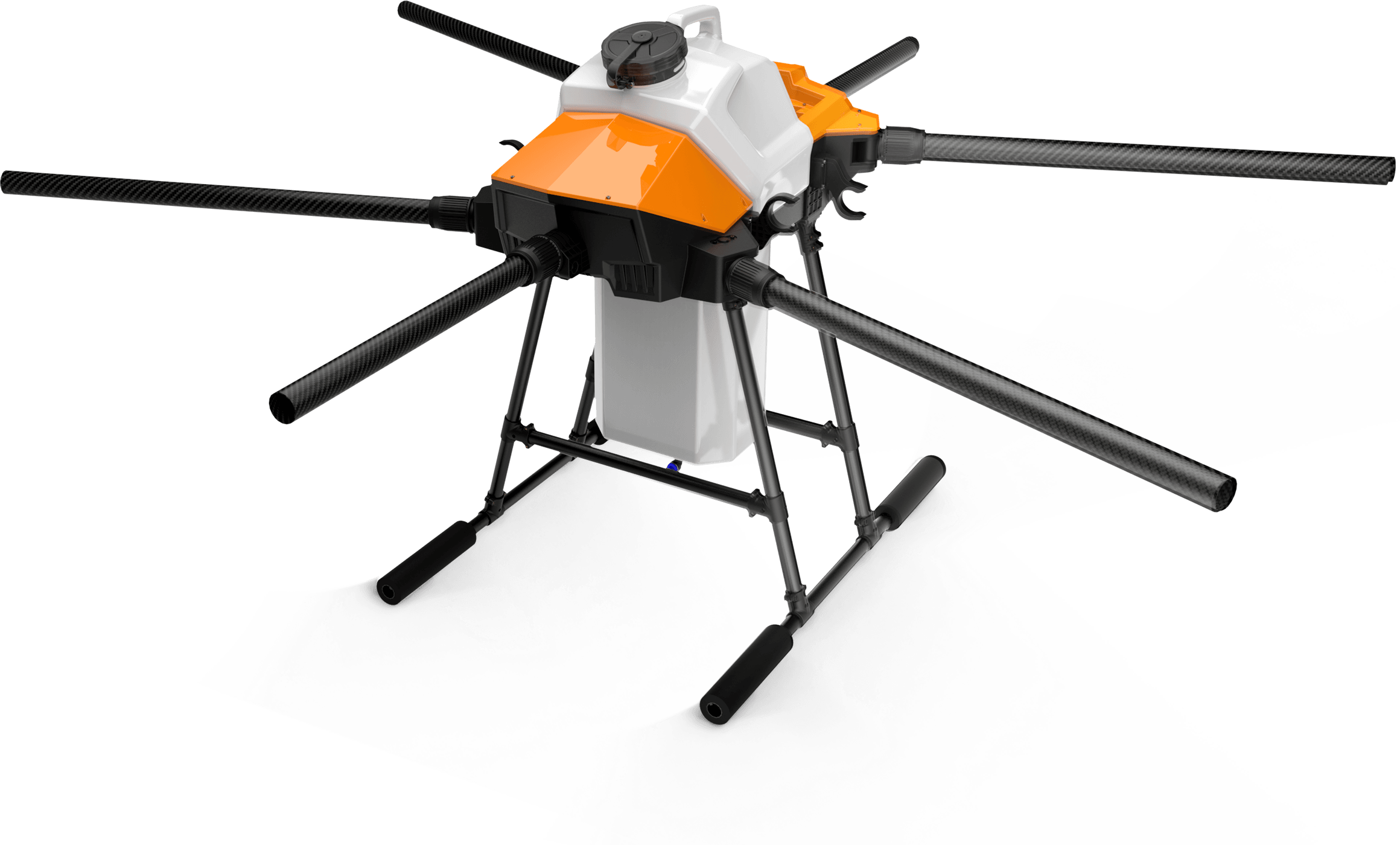

Shared frame for quadcopter and hexacopter
G420
（640+20L）
G620
（750+520+20L）
G630
（750+520+30L）
Model
Tank capacity
Wheelbase
Recommended power
G420
20L
1820mm
Hobbywing X9 PLUS +36inch propeller
G620
20L
2028mm
Hobbywing X9 +34inch propeller
G630
30L
2028mm
Hobbywing X9 PLUS +36inch propeller
One machine for multiple uses (spray + spread)
The spreading system and spraying system can be quickly replaced to meet the operation requirements of two different scenarios
Spreading system installation effect
Spreading system installation effect
GX series drone effect
Four and six axis share frame, a variety of tanks are available
