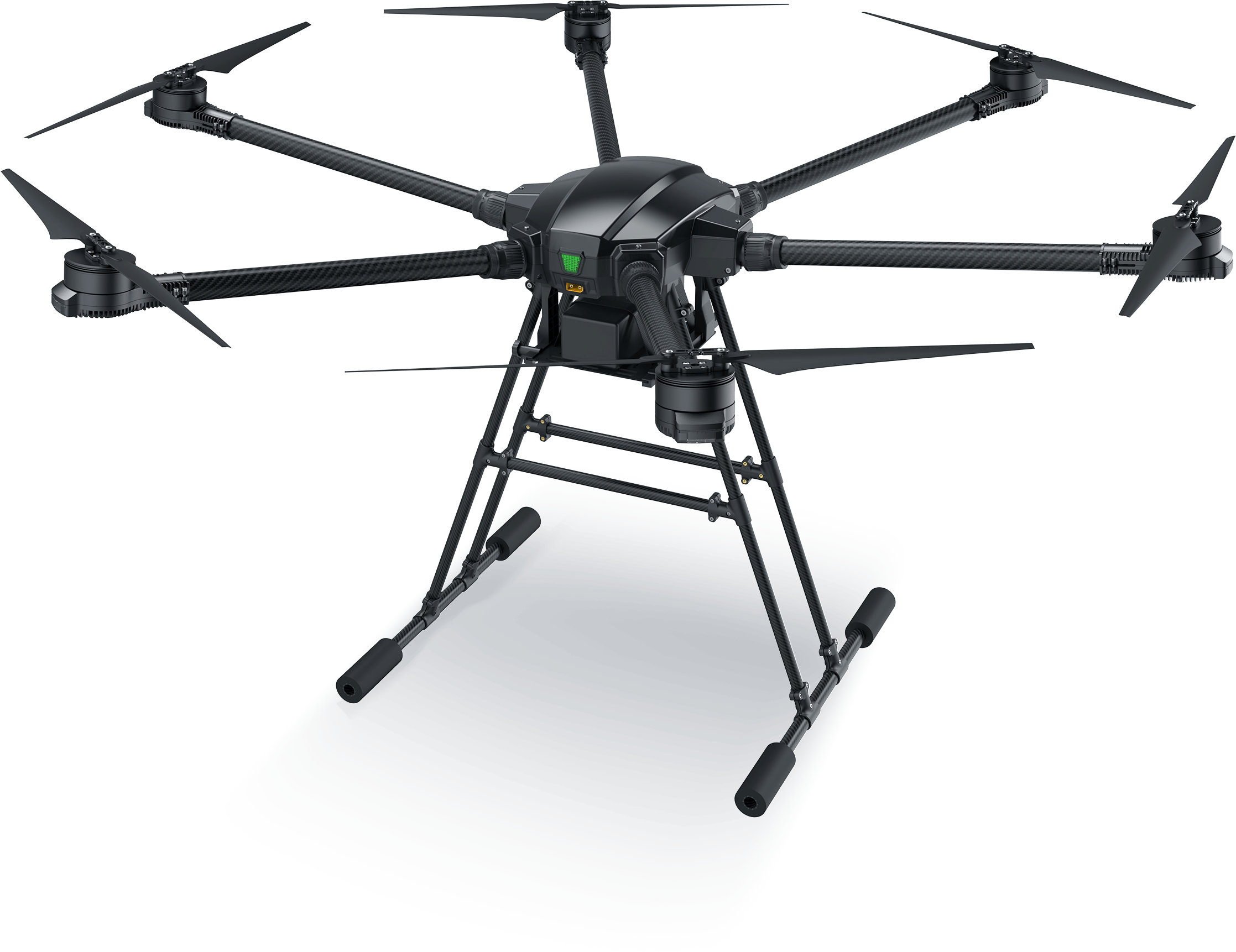

X6 series

Light Load Flight Platform

X6100

X6120

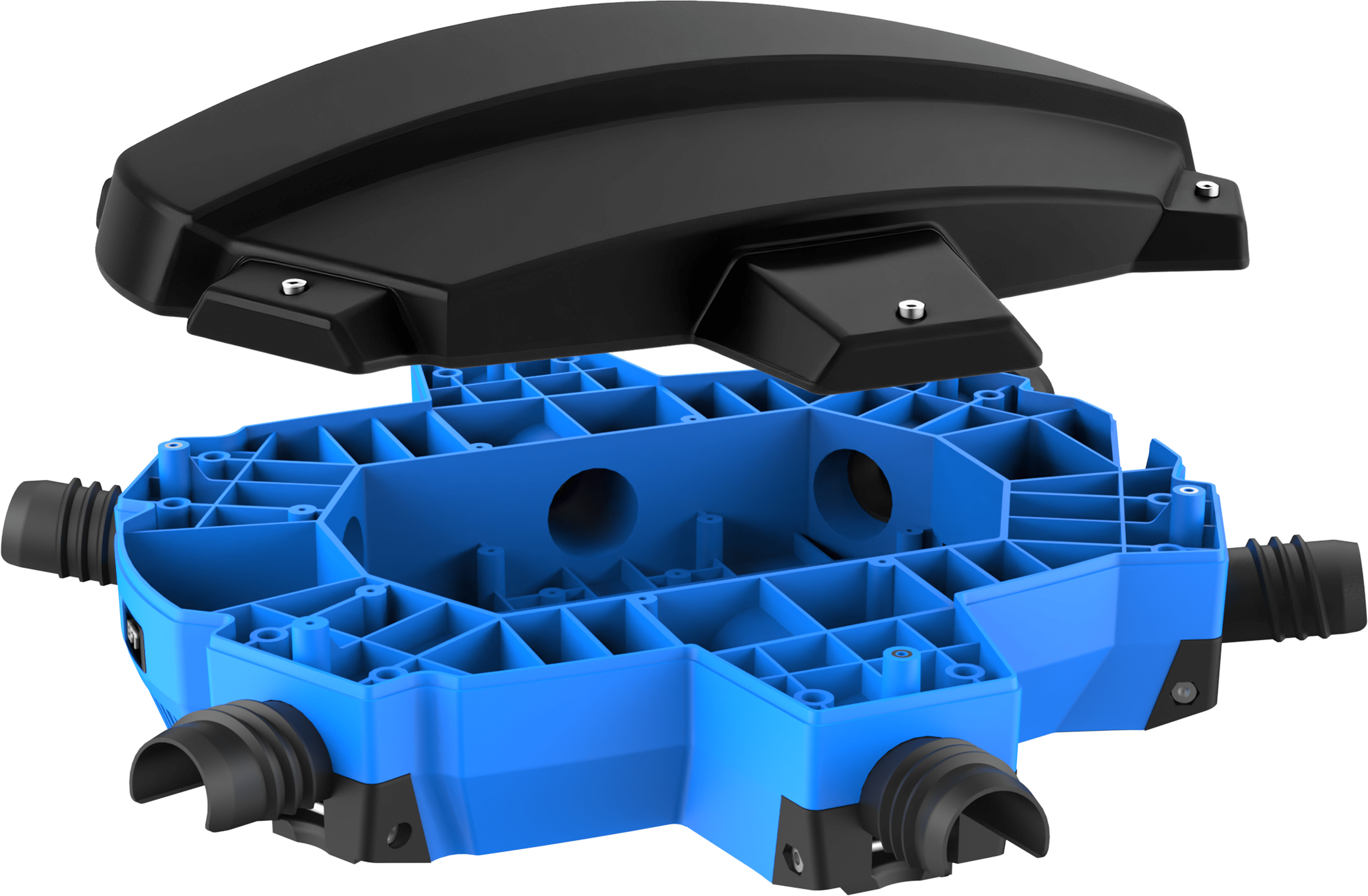

Modular integrated fuselage

The main body of the fuselage adopts a modular design, and the fuselage frame is integrally formed, with a simplified structure and convenient assembly

Note: X6100 body adopts nylon + glass fiber material, X6120 body adopts nylon + carbon fiber material

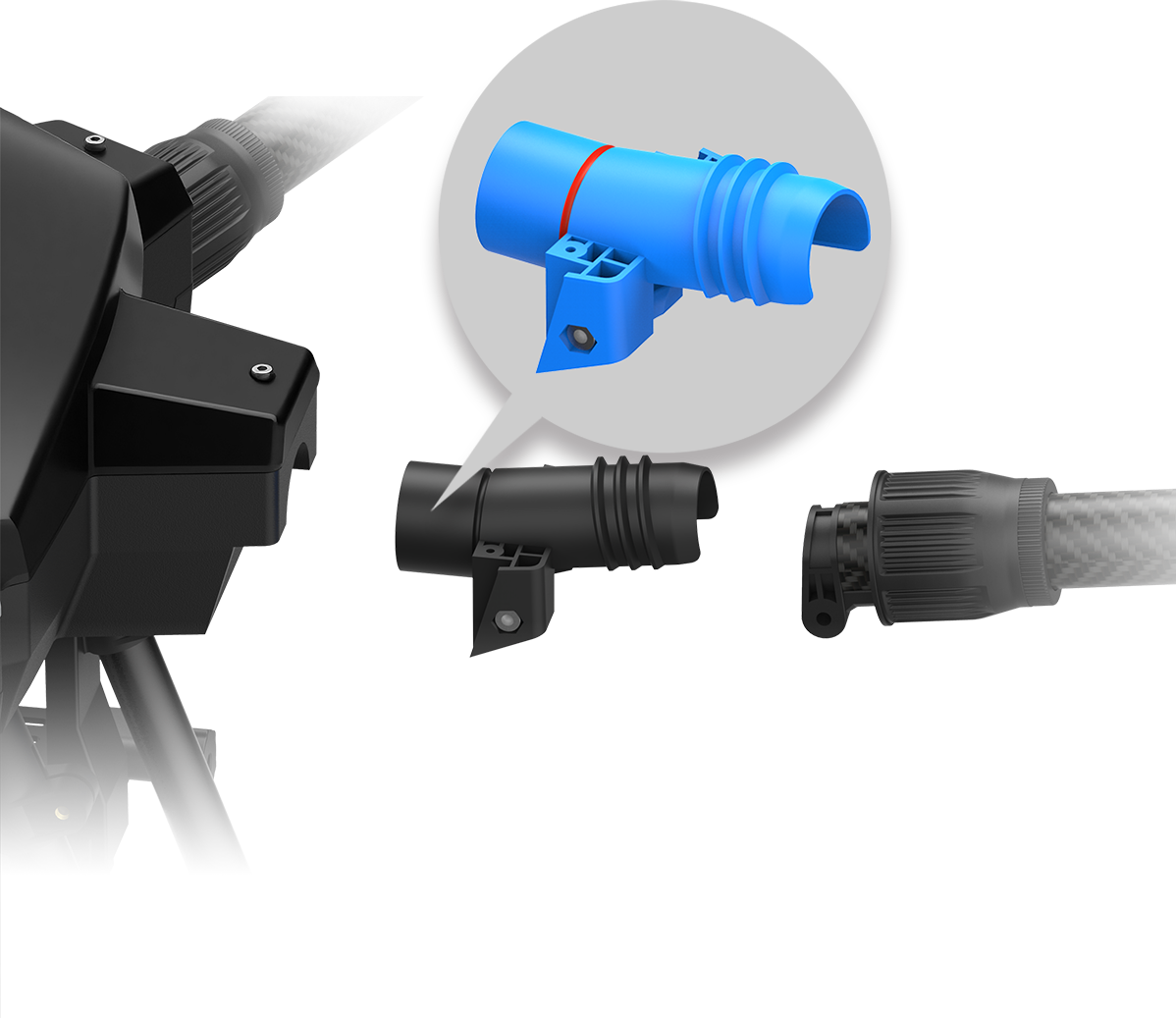

Separate arm disassembly

The arm adopts a separate disassembly design and ingeniously designed breakpoints to reduce damage to the parts of the bomber and reduce maintenance costs

Note: X6100 arm disassembly and carbon tube diameter 25mm, X6120 arm disassembly and carbon tube diameter 30mm

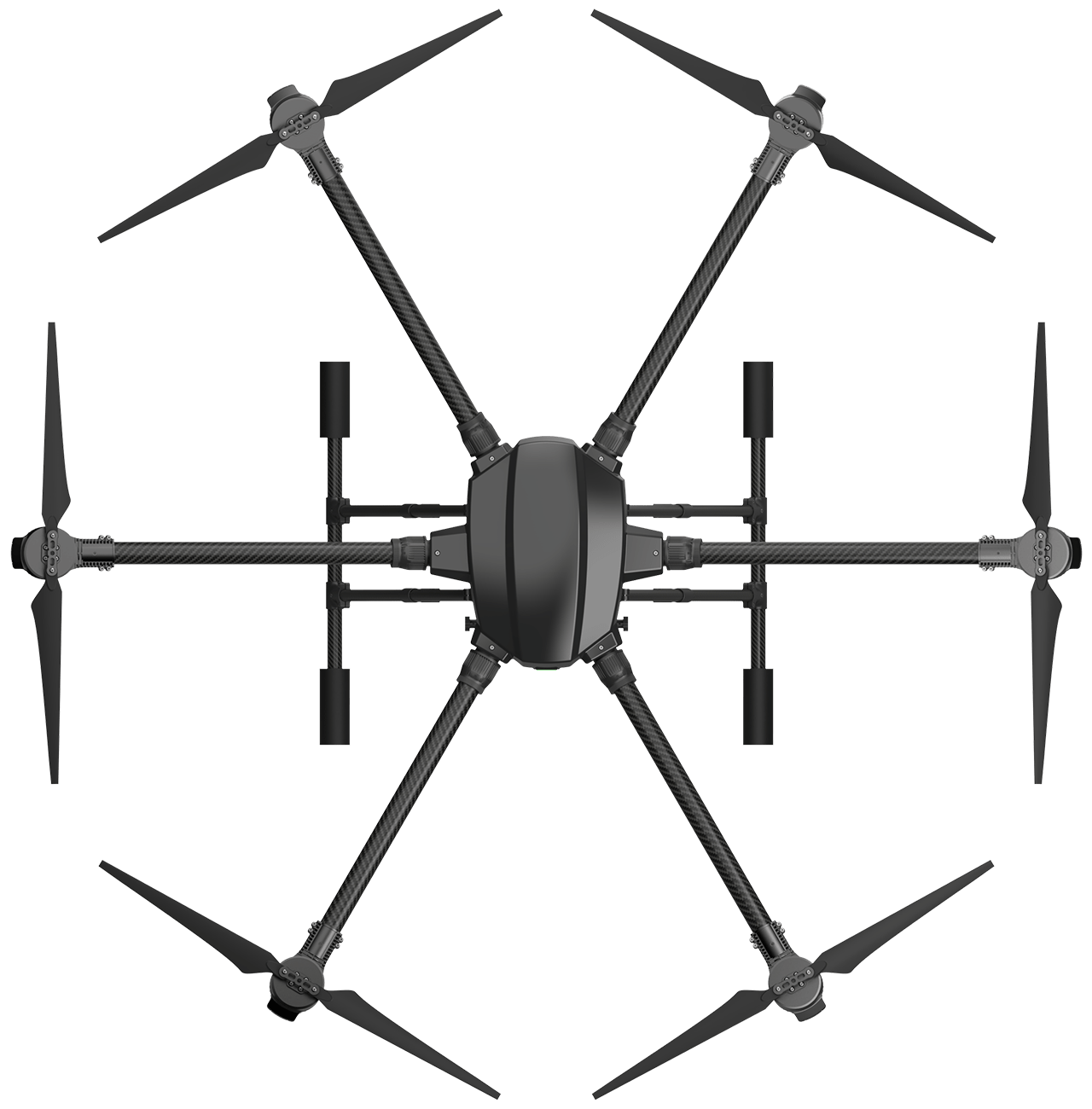

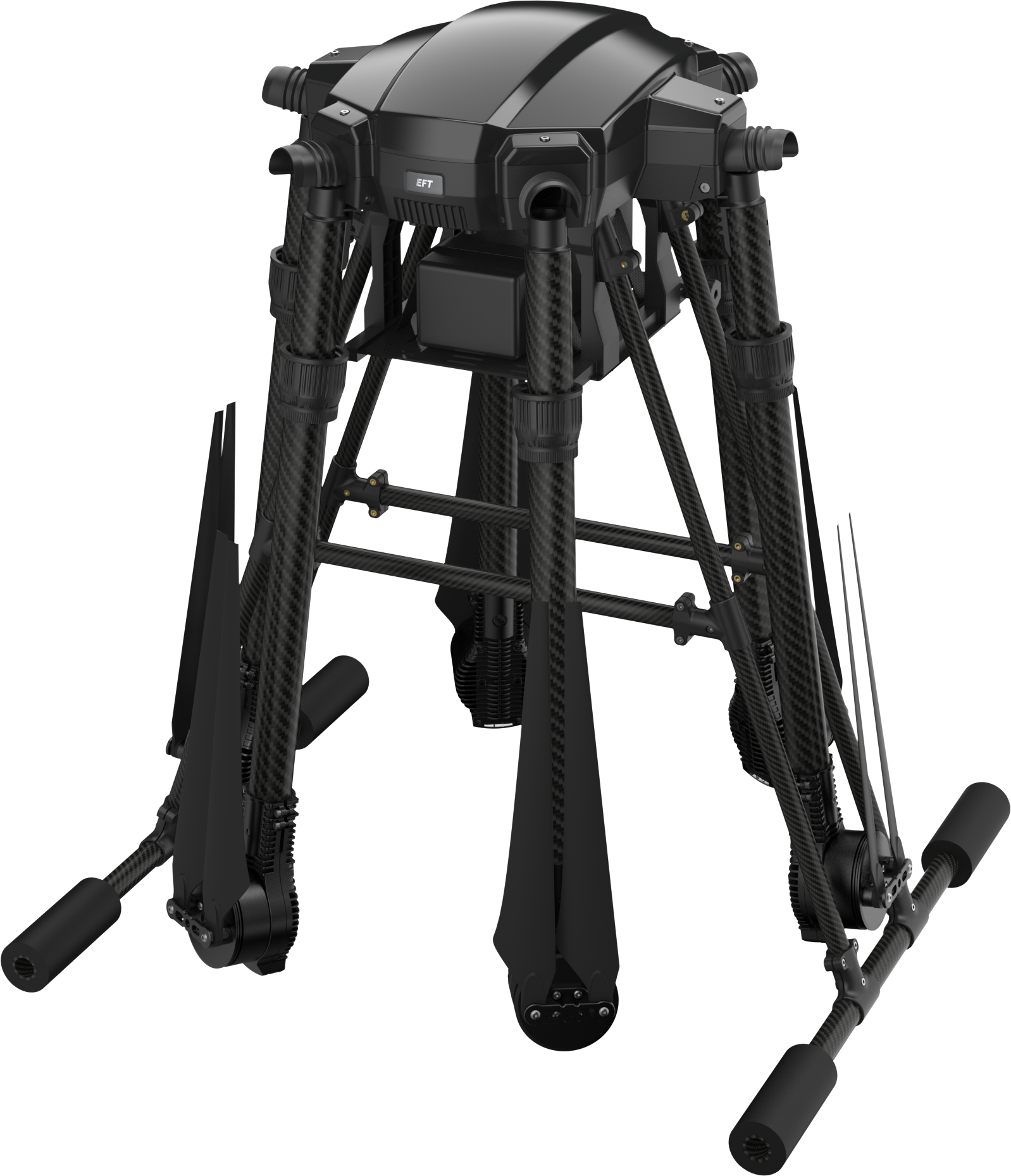

Umbrella folding design

The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.

X6100

X6120

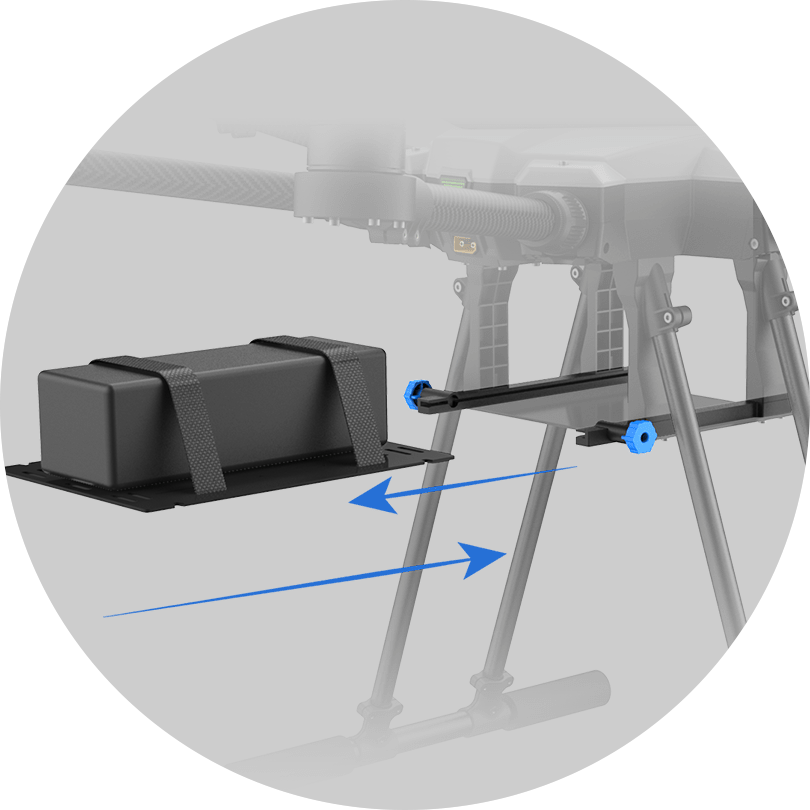

Quick release battery track

The battery guide rail cooperates with the spring positioning knob to realize the tool-free replacement of the battery compartment, making the battery installation and replacement more convenient and quick

Full waterproof body

The design of the whole machine is dustproof and waterproof, and the protection grade is IP65, which can fly normally in the rain.

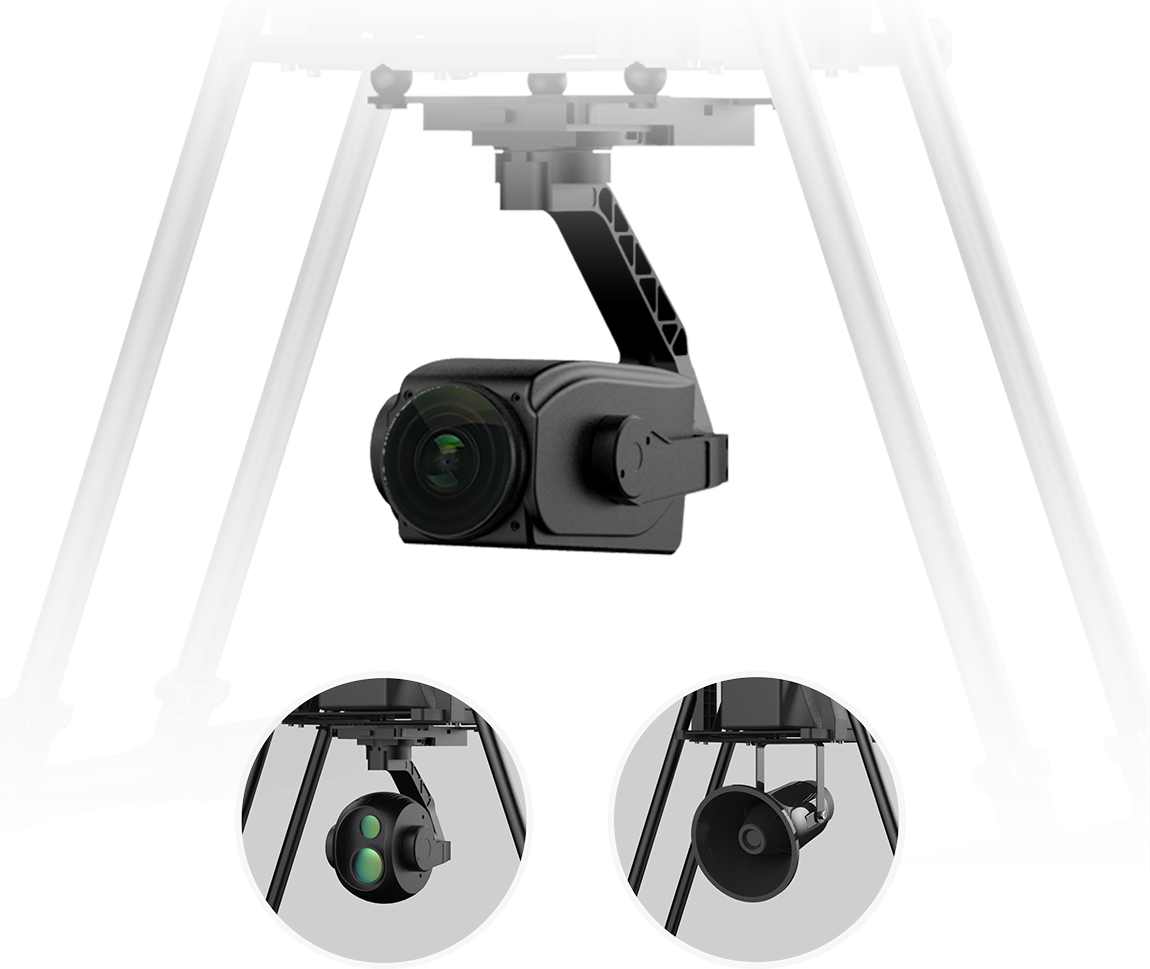

Scalable mounting platform

The expandable mounting platform can be adapted to equipment used in different industries, such as carrying PTZ, pod, megaphone, throwing device, etc.

Mounting scheme example

product details

Built in GPS

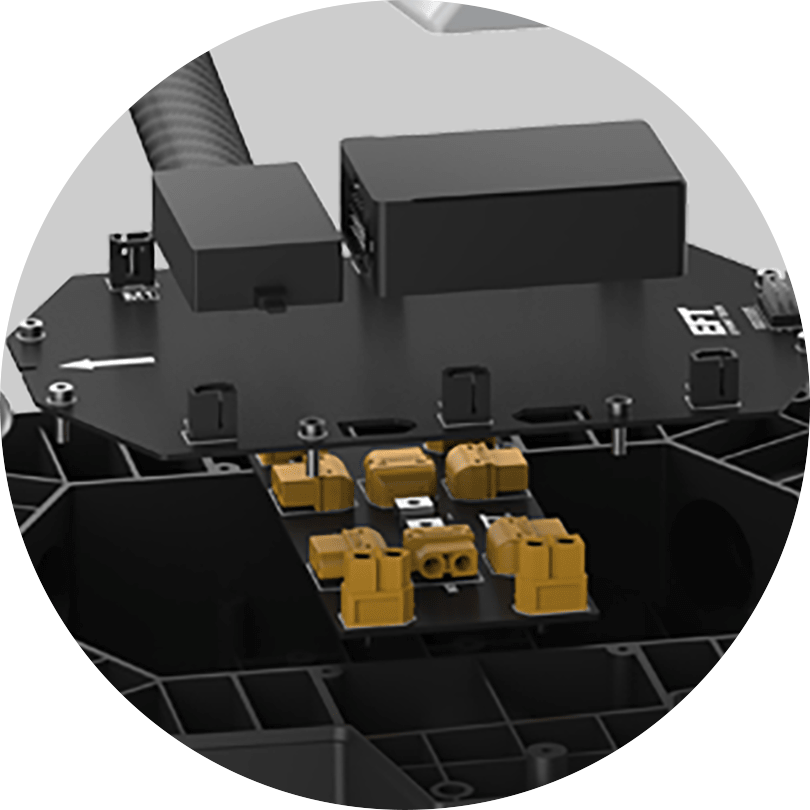

Power Board
Distribution board
Expand the interface

Optional E5 motor SET

X6100 can be equipped with E5 special MOTOR set, with 18-inch folding propeller,Higher efficiency, more stable performance, overall waterproofing

Performance parameter table

Basic parameters

Product specification	maximum pull	4kg
	Recommended pull	1.5-2kg
	Supply voltage	25.2V（6S）
	working temperature	-10~40℃
	kit weight	362g
	Line length	500mm
	Tube diameter	25mm

propeller	propeller size	18x6.5inch
propeller	propeller weight	48g/piece

motor	Stator size	50x8mm
	Motor KV value	335KV
	Motor weight	190g

ESC	maximum voltage	25.2V
	Maximum current	40A
	signal frequency	50-400Hz
	Signal pulse width	1050us-1950us

Test parameters

Motor	Paddle	Voltage(V)	Throttle(%)	current(A)	Pull(g)
E5 335KV	18inch	24V	40%	0.86	341
			50%	2.72	811
			60%	6.13	1416
			70%	10.79	2116
			80%	17.51	2809
			90%	26.29	3594
			100%	30.59	3838

Power(W)	Efficiency(g/w)	Temperature(℃)
20.6	16.521	55℃
65.3	12.423
147.1	9.625
259.0	8.171
420.2	6.684
631.0	5.696
734.2	5.228

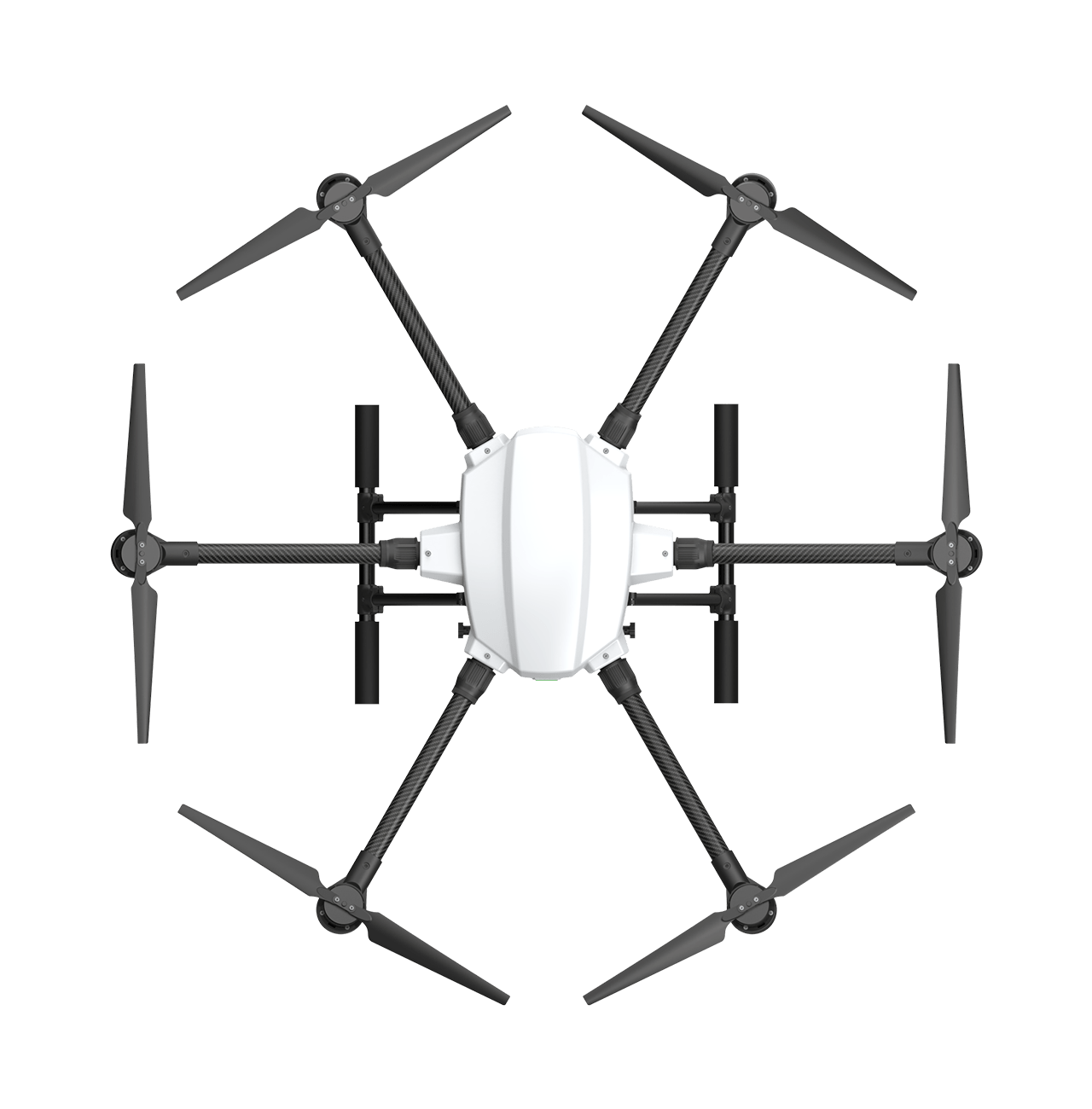

Product parameters

X6100

X6120

X6100

Wheelbase:1000mm

Frame weight:2.82kg

Empty weight:4.85kg

Full load weight:12kg

Effective load:0-3kg

Recommended motor:E5

Recommended ESC:40A ESC

Recommended blade:18inch

Recommended battery:16-22Ah(6S)

X6120

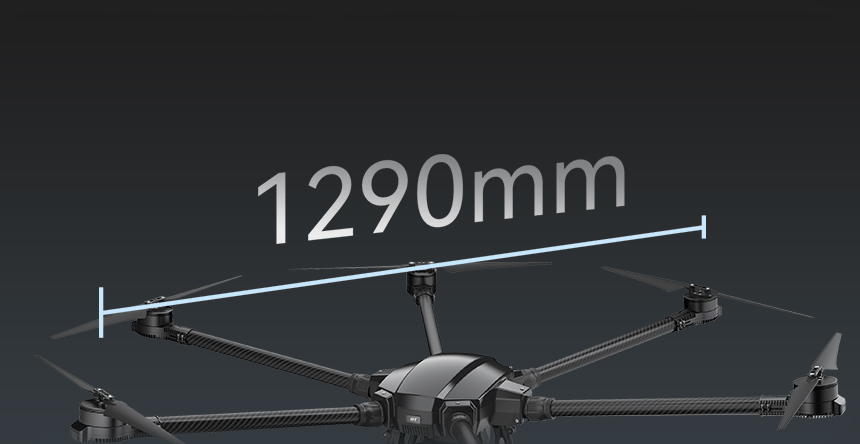

Wheelbase:1290mm

Frame weight:3.04kg

Empty weight:7.5kg

Full load weight:18kg

Effective load:0-5kg

Recommended motor:X6Plus

Recommended ESC:60A ESC

Recommended blade:24inch

Recommended battery:16-22Ah(12S)

Multi-purpose expansion

Education and training
Scientific research experiment

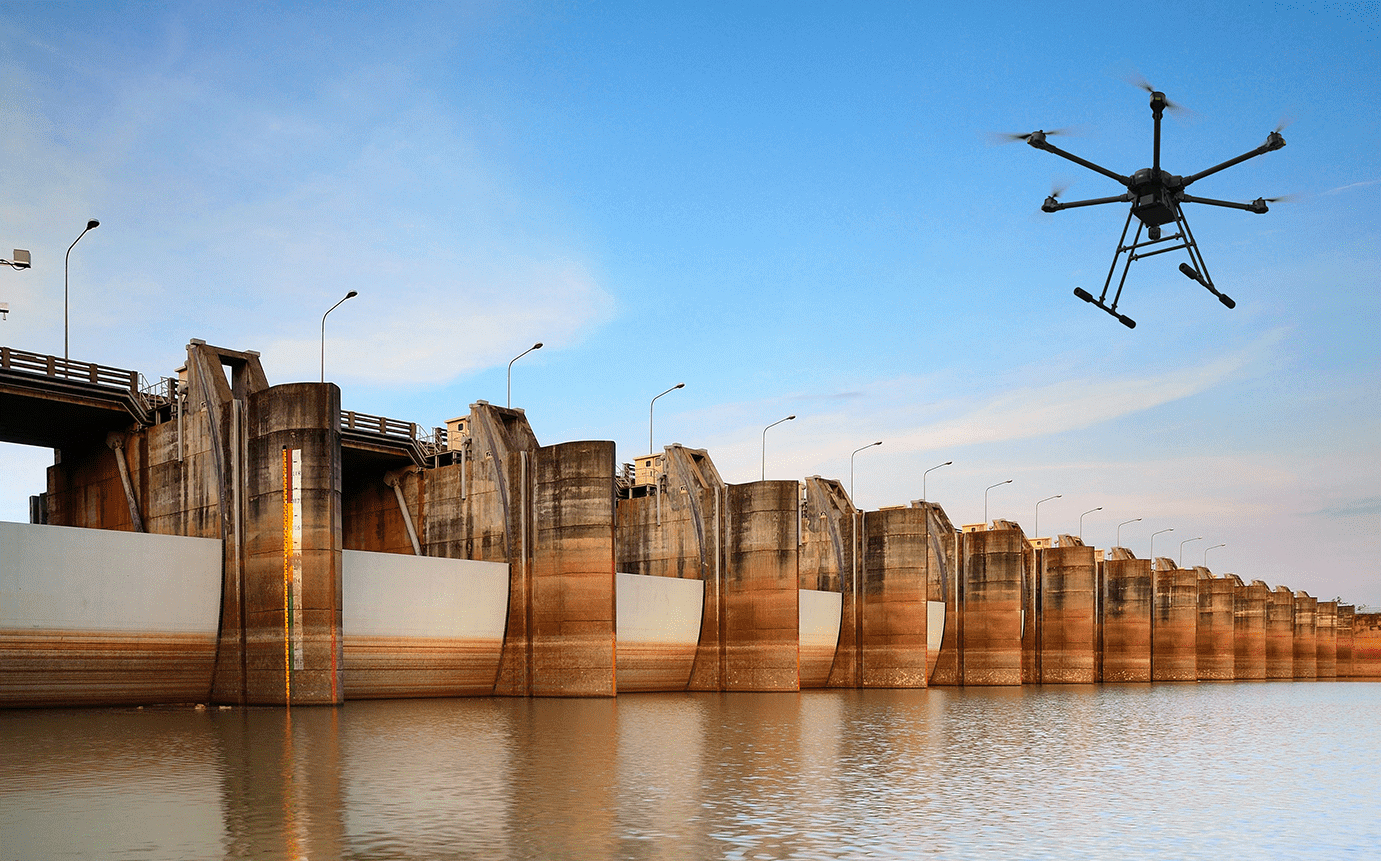

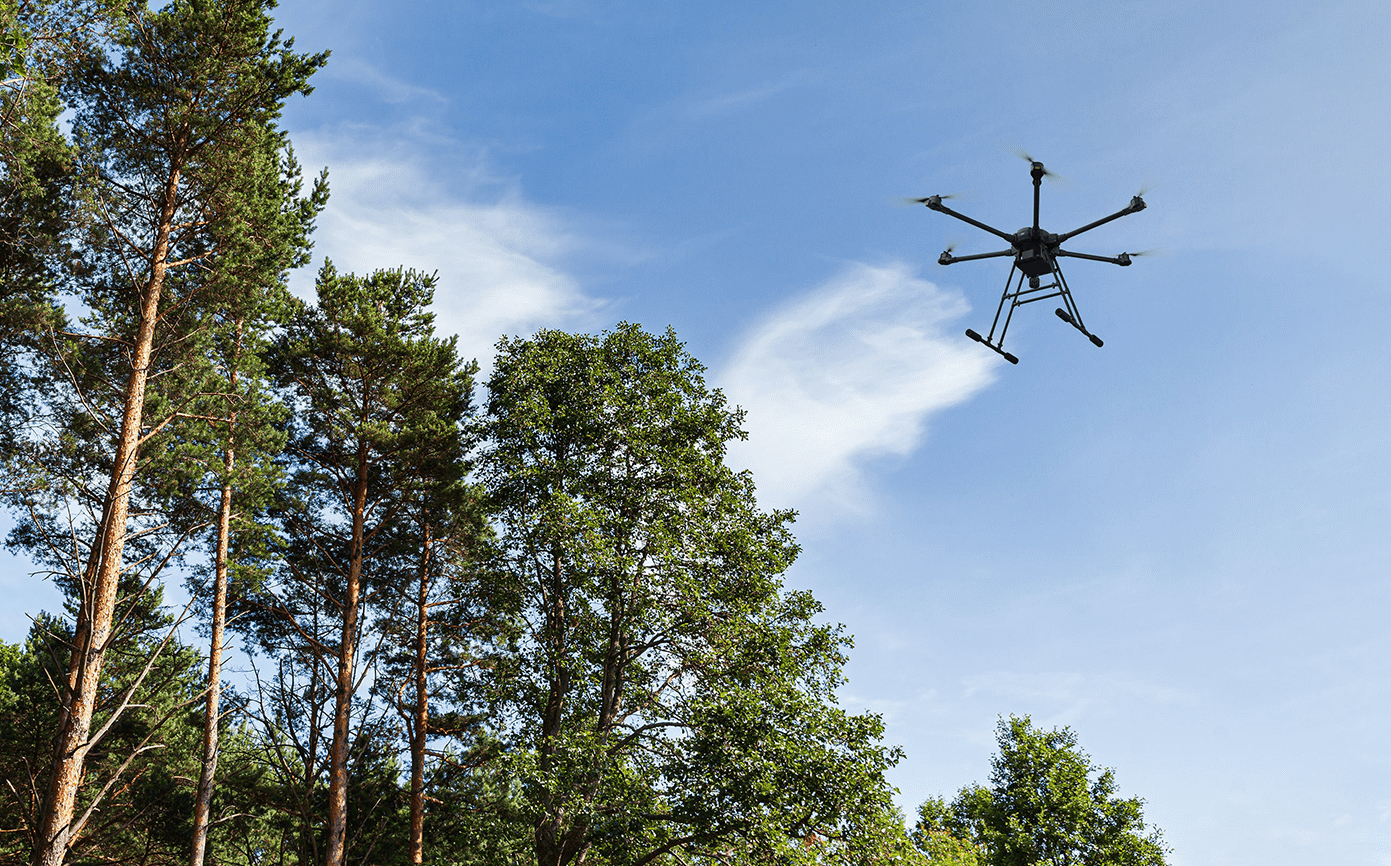

Industry Application

For bulk purchases, customization, technical consultation, etc., please leave your requirements and contact information, we will get in touch with you as soon as possible. You can also contact us directly, Tel: (0551) 62579736, Email: infor@effort-tech.com
