G20 adopts an integrated body design, which greatly reduces the number of parts, while having higher strength and better waterproof performance
Embracing folding structure

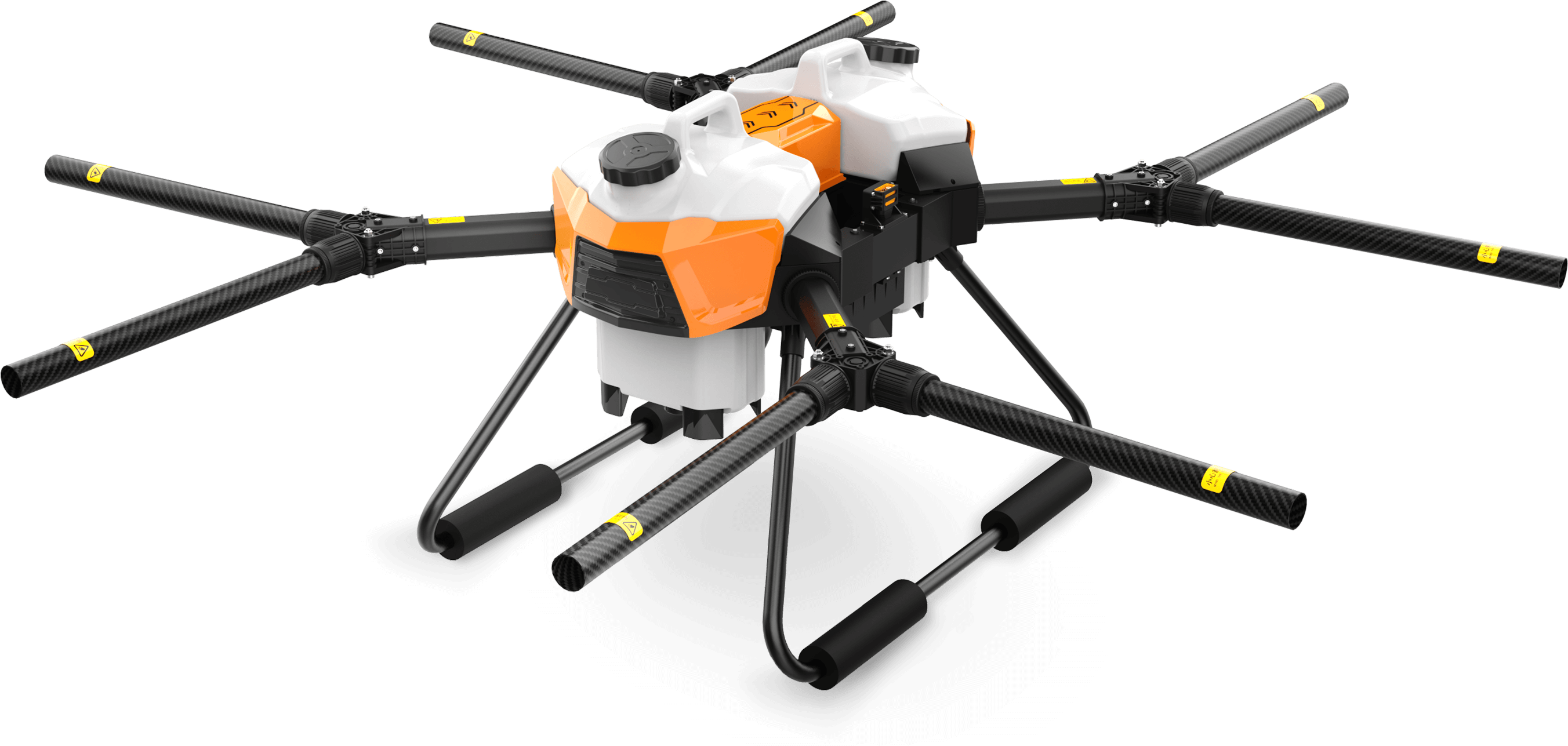

Fully symmetrical eight-axis layout
G20 adopts a fully symmetrical eight-axis layout, with double front and rear tanks + left and right batteries, which can ensure a stable center of gravity of the fuselage and dual redundancy for power and batteries
Fully symmetrical four-axis layout
G20-Q adopts a fully symmetrical four-axis layout scheme with dual front and rear medicine tanks + dual left and right batteries, which can ensure a stable center of gravity of the fuselage, and dual redundancy for power and batteries
Quick-release double battery + double tanks
Quick-release double battery + double tank, which can realize rapid medicine change and battery replacement, which greatly shortens the waiting time of operation
Optional Y-shaped extension nozzles
G20 can be equipped with four Y-shaped extension rod nozzles, with high-pressure water pumps, and a powerful spray system can ensure the fine particles of the liquid atomization and reduce droplet drift
Tower-type flight control design
G20 adopts a stacked tower-type flight control warehouse, which arranges flight control modules with different functions in a stacked manner, with clear wiring and easy maintenance
Optional lower-mounted radar warehouse
A lower-mounted radar warehouse is optional at the bottom of the G20, and fixed-height radar and obstacle avoidance radar are optional to achieve more accurate height-fixing ground imitation and obstacle avoidance effects
Optional FPV camera + lighting
Optional high-definition FPV camera can meet the needs of long-distance operation visualization, with night flight LED searchlight, day and night, guarding the farmland
Product parameters
G20
Wheelbase
2125mm
Tank capacity
11L x2
Frame weight
13.7kg
Max take off weight
58kg
Recommend motor
X8+30inch
G20-Q
Wheelbase
1913mm
Tank capacity
11L x2
Frame weight
12kg
Max take off weight
52.3kg
Recommend motor
X9 Plus+36inch
The assembled G20 agricultural drone display
